"Our wide product range offers standard products but also tailor-made solutions for your specific needs, like penstocks for high water pressure, in large dimensions or made out of special materials."
Fabian Wachter,
Head of Supply Chain Management at ATEC
Channel Penstocks
Range of Application
Mounting in open channel or mounting to channel outlet up to very large dimensions.
Suitable for isolation, control or throttling of the flow medium.
ATEC ZTEC - Handstop
Dimensions: 150 x 150 up to 1000 x 1000
ATEC LTEC - Channel Penstock (lightweight)
Dimensions: 150 x 150 up to 1200 x 1200
ATEC UNITEC - Channel Penstock (medium to heavy duty)
Dimensions: 1000 x 1000 up to 3000 x 3000
ATEC MULTITEC - Channel Penstock (heavy duty)
Dimensions: 1000 x 1000 up to largest dimensions
Please check our brochure Products & Solutions for specific technical information.
Weir Type Channel Penstocks
Range of Application
Mounting to channel outlet up to very large dimensions.
Suitable for discharge and level control.
ATEC ECOTEC - Weir Type Channel Penstock (lightweight)
Dimensions: 150 x 150 up to 1200 x 1200
ATEC UNITEC - Weir Type Channel Penstock
(medium to heavy duty)
Dimensions: 1000 x 1000 up to 3000 x 3000
ATEC MULTITEC - Weir Type Channel Penstock (heavy duty)
Dimensions: 1000 x 1000 up to largest dimensions
Please check our brochure Products & Solutions for specific technical information.
Penstocks
Range of Application
Mounting to chamber, channel or pipe outlets.
Suitable for isolation, control or throttling of the flow medium.
ATEC ECOTEC - Penstock (lightweight)
Dimensions: 150 x 150 up to 300 x 300 and 4 mWC
ATEC COMPATEC - Penstock (medium duty)
Dimensions: 150 x 150 up to 1200 x 1200 and 6 mWC
ATEC UNITEC - Penstock (medium to heavy duty)
Dimensions: 150 x 150 up to 2000 x 2000 and 6 mWC
ATEC MULTITEC - Penstock (heavy duty)
Dimensions: 150 x 150 up to largest dimensions and 30 mWC
Please check our brochure Products & Solutions for specific technical information.
Weir Type Penstocks
Range of Application
Mounting to chamber, channel or pipe outlets.
Suitable for isolation, control or throttling of the flow medium.
ATEC ECOTEC - Weir Type Penstock (lightweight)
Dimensions: 150 x 150 up to 300 x 300 and 4 mWC
ATEC COMPATEC - Weir Type Penstock (medium duty)
Dimensions: 150 x 150 up to 1200 x 1200 and 6 mWC
ATEC UNITEC - Weir Type Penstock (medium to heavy duty)
Dimensions: 150 x 150 up to 2000 x 2000 and 6 mWC
ATEC MULTITEC - Weir Type Penstock (heavy duty)
Dimensions: 150 x 150 up to largest dimensions and 30 mWC
Please check our brochure Products & Solutions for specific technical information.

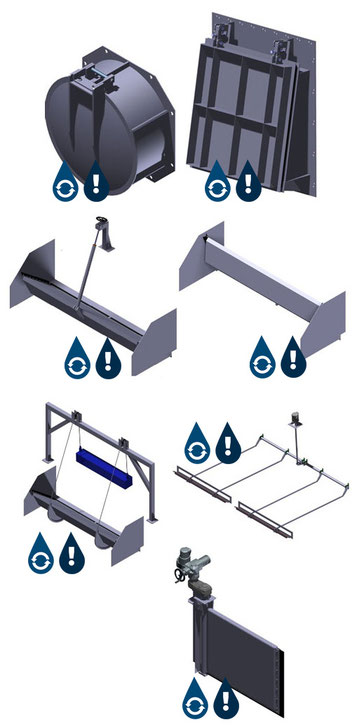

Flaps & Spillways
The ATEC product range includes other customized solutions like shown below.
Please contact us for more Information.
ATEC CIRTEC / RECTEC - Flap Valves
ATEC Flap Valves type CIRTEC / RECTEC are constructions that prevent the backflow of water. These flaps are also used as protection
against the ingress of small animals into the channel or pipe.
ATEC WEIRTEC - Tilting-flap Spillways
Installation in structure recess of large discharge width with low heights of travel, suitable for level control, scum discharge,
etc.
ATEC TIDETEC - Tidal Flap
Tidal Flaps are flaps with sealings at 3- or 4-sides that prevent the backflow at flood waters.
KNOWTEC - Weight-loaded Flap Valve
Weight-loaded flap valves with sealing at 3-sides are used to regulate the water level at a desired constant flood height.
ATEC FLUSHTEC - Isolating and Flushing Valve
Four-side sealing flaps. The approved construction is mounted in settling tanks of treatment plants or water works. Due to the
sedimentative cleaning process, the valves are usually used at the outlet/ bottom of basins with large width and low height.
ATEC REVTEC - Reversing Flap
ATEC Reversing Flaps type REVTEC are flaps with sealing at 3-faces and are used for distribution of water flows in open channels.
Please check our brochure Products & Solutions for specific technical information.
Operating Gears & Actuators
ATEC designs operating gears for all valve types. The gear designs are tailored to operate ATEC valves.
Standard actuators are:
Support Bracket
Protruding Headstock
Central Headstock
Thrust Bridge
Ceiling-mounted Operating Gear
Wall Bracket
Protruding Top Bracket
Top Bracket
Wall Bushing with Electric Drive
ATEC actuators – type Support Bracket, Thrust bridge or Wall Bracket – are also suited for double stem operation.
We also offer a pressure tight wall bushing for central headstock , ceiling-mounted operating gear, and top bracket as well as wall bushing with electric drive.
Please check our brochure Products & Solutions for specific technical information.
