ATEC Gmbh offers a complete component portfolio including experienced engineering capabilities.

Our range of solutions for water applications include the products shown below - for more details and questions like "how to adjust these" or "how to apply", please contact us - we'd be happy to tell you more.

"Everybody agrees - water is key to many things: sanitation, hygiene and life in general. We at ATEC contribute to that with leading technology and help our customers to meet their highest standards."


Sascha Runge,
Sales Manager at ATEC GmbH

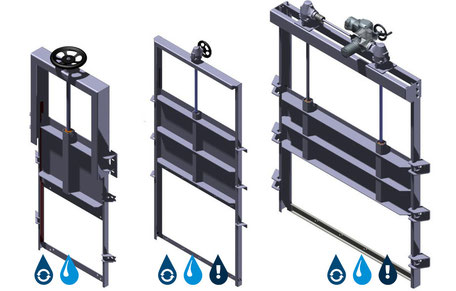

Channel Penstocks


Range of Application

Mounting in open channel or mounting to channel outlet up to very large dimensions.

Suitable for isolation, control or throttling of the flow medium.

ATEC ZTEC - Handstop

Dimensions: 150 x 150 up to 1000 x 1000

ATEC LTEC - Channel Penstock (lightweight)

Dimensions: 150 x 150 up to 1200 x 1200

ATEC UNITEC - Channel Penstock (medium to heavy duty)

Dimensions: 1000 x 1000 up to 3000 x 3000

ATEC MULTITEC - Channel Penstock (heavy duty)

Dimensions: 1000 x 1000 up to largest dimensions


Please check our brochure Products & Solutions for specific technical information.

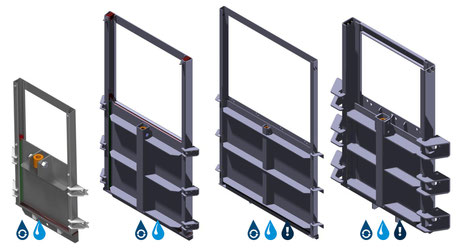

Weir Type Channel Penstocks


Range of Application

Mounting to channel outlet up to very large dimensions.

Suitable for discharge and level control.

ATEC ECOTEC - Weir Type Channel Penstock (lightweight)

Dimensions: 150 x 150 up to 1200 x 1200

ATEC UNITEC - Weir Type Channel Penstock

(medium to heavy duty)

Dimensions: 1000 x 1000 up to 3000 x 3000

ATEC MULTITEC - Weir Type Channel Penstock (heavy duty)

Dimensions: 1000 x 1000 up to largest dimensions


Please check our brochure Products & Solutions for specific technical information.

Penstocks


Range of Application

Mounting to chamber, channel or pipe outlets.

Suitable for isolation, control or throttling of the flow medium.

ATEC ECOTEC - Penstock (lightweight)

Dimensions: 150 x 150 up to 300 x 300 and 4 mWC

ATEC COMPATEC - Penstock (medium duty)

Dimensions: 150 x 150 up to 1200 x 1200 and 6 mWC

ATEC UNITEC - Penstock (medium to heavy duty)

Dimensions: 150 x 150 up to 2000 x 2000 and 6 mWC

ATEC MULTITEC - Penstock (heavy duty)

Dimensions: 150 x 150 up to largest dimensions and 30 mWC


Please check our brochure Products & Solutions for specific technical information.

Weir Type Penstocks


Range of Application

Mounting to chamber, channel or pipe outlets.

Suitable for isolation, control or throttling of the flow medium.



ATEC ECOTEC - Weir Type Penstock (lightweight)

Dimensions: 150 x 150 up to 300 x 300 and 4 mWC

ATEC COMPATEC - Weir Type Penstock (medium duty)

Dimensions: 150 x 150 up to 1200 x 1200 and 6 mWC

ATEC UNITEC - Weir Type Penstock (medium to heavy duty)

Dimensions: 150 x 150 up to 2000 x 2000 and 6 mWC

ATEC MULTITEC - Weir Type Penstock (heavy duty)

Dimensions: 150 x 150 up to largest dimensions and 30 mWC


Please check our brochure Products & Solutions for specific technical information.

Operating Gears & Actuators


ATEC designs operating gears for all valve types. The gear designs are tailored to operate ATEC valves.

Standard actuators are:

Support Bracket

Protruding Headstock

Central Headstock

Thrust Bridge

Ceiling-mounted Operating Gear

Wall Bracket

Protruding Top Bracket

Top Bracket

Wall Bushing with Electric Drive



ATEC actuators – type Support Bracket, Thrust bridge or Wall Bracket – are also suited for double stem operation.



We also offer a pressure tight wall bushing for central headstock , ceiling-mounted operating gear, and top bracket as well as wall bushing with electric drive.


Please check our brochure Products & Solutions for specific technical information.

Brochure


Download
ATEC Products & Solutions
Overview of ATEC's products & solutions including technical specifications and details.
atec_products_solutions_1818_en.pdf
Adobe Acrobat Document 1.3 MB
